Feed Production Line

Application

It is suitable for poultry or livestock, such as Baby Chicken, Broiler, Layer, Breeding Hens or Young Cows, Calves, Breeding Cattle, Beef Cattle, Sheep, Pig, etc. feed making.

Inquiry [email protected] +8613598071775

PDF Download 

Product Introduce

HKB feed pellet production line can produce different size poultry and livestock feed pellet, such as 1.5mm small baby chicken feed pellet , 3-4mm broilers and laying hens feed pellet, 4mm cattle feed, etc. The main machines of feed pellet production line is feed grinder, feed mixer, feed pelletized, feed cooler and packaging.

Feature

1. Feeder and conditioning device of the Animal Feed Mill Plant and the feeding chute of the livestock feed pelletizing machine adopt stainless steel material, durable use.

2. Feeding system of the Small Animal Feed Mill Plant adopts electromagnetic speed regulating control, speed control, convenience, and full capacity to adapt to the different material requirements.

3. Host drive with high precision gear drive, ring die adopt anchor type and disassembly is convenient.

4. Security has a strong magnetic magnet and overload protection device such as a safe and reliable.

5. Compact structure, beautiful appearance, high yield, less consumption, easy to use, maintenance, and quick.

Structure

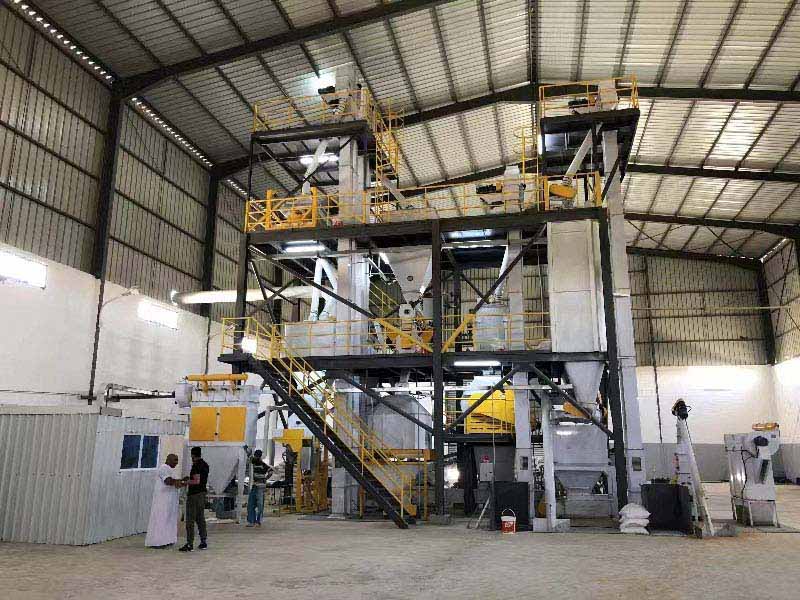

HKB can provide the complete turnkey project feed pellet production line, from design to install. Whether you want to produce chicken feed, cow feed or pig feed, the capacity is 1-100TPH can be choose. The main machine is feed hammer mill, feed mixer, feed pellet machine, cooling machine, packaging machine.
1.Raw Material Receiving→2.Grinding→3.Mixing→4.Pelleting →5.Cooling→6.Crumbler→7.Packaging System

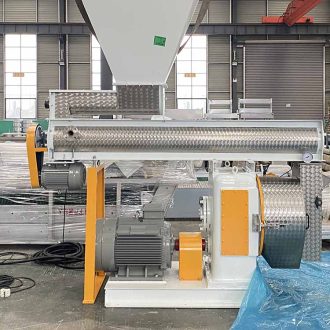

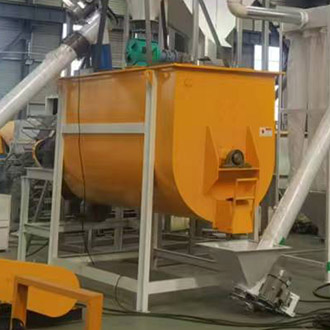

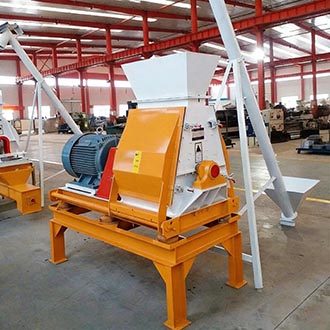

Through the Hammer Mill, the granular raw material is crushed into very small. Easy to mix raw material better	This Mixer is used for mixing powdery materials. It has high work efficiency and high mixing uniformity.	HKB feed pellet mill are equipped with stainless steel feeder and conditioner to make high quality pellet.

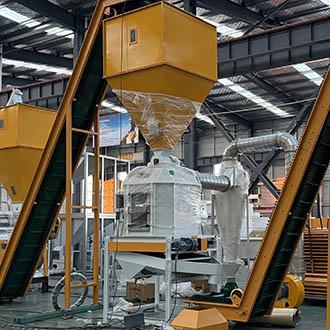

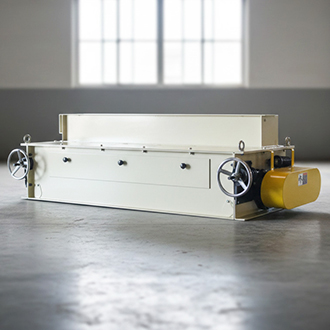

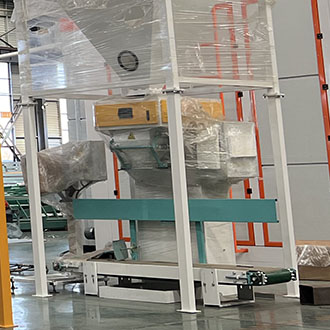

The cooler to reduce the pellets’ temperature to room temperature to ensure the pellets integrity.	The crumbler is mainly used for crushing feed pellet, and can also for soybeans, corn, soy meal.	The packaging system can be used to packaging the pellet feed into 10 to 100kg per bag, even 1 ton/bag.

Technical Parameter

Quality hay (including 20% leguminous grass), Corn silage, Green cut feed, Roots (carrots, beets), Bad residue (Distiller grains, bean curd residue), Soybean meal, Wheat bran, Salt, baking soda, Cotton seed meal, Rape-seed cake, Maize protein meal, Calcium bicarbonate, Stone powder, etc.

Model	Capacity	Main Motor Power	Dia. of Ring Die	Pellet Size
SZLH250	1-2T/H	22KW	250mm	2-12mm
SZLH320	3-5T/H	37KW	320mm	2-12mm
SZLH350	5-8T/H	55KW	350mm	2-12mm
SZLH420	8-12T/H	110KW	420mm	2-12mm
SZLH508	12-18T/H	160KW	508mm	2-12mm
SZLH558	15-25T/H	180KW	558mm	2-12mm
SZLH678	20-30T/H	220KW	678mm	2-12mm
SZLH768	25-42T/H	280KW	768mm	2-12mm

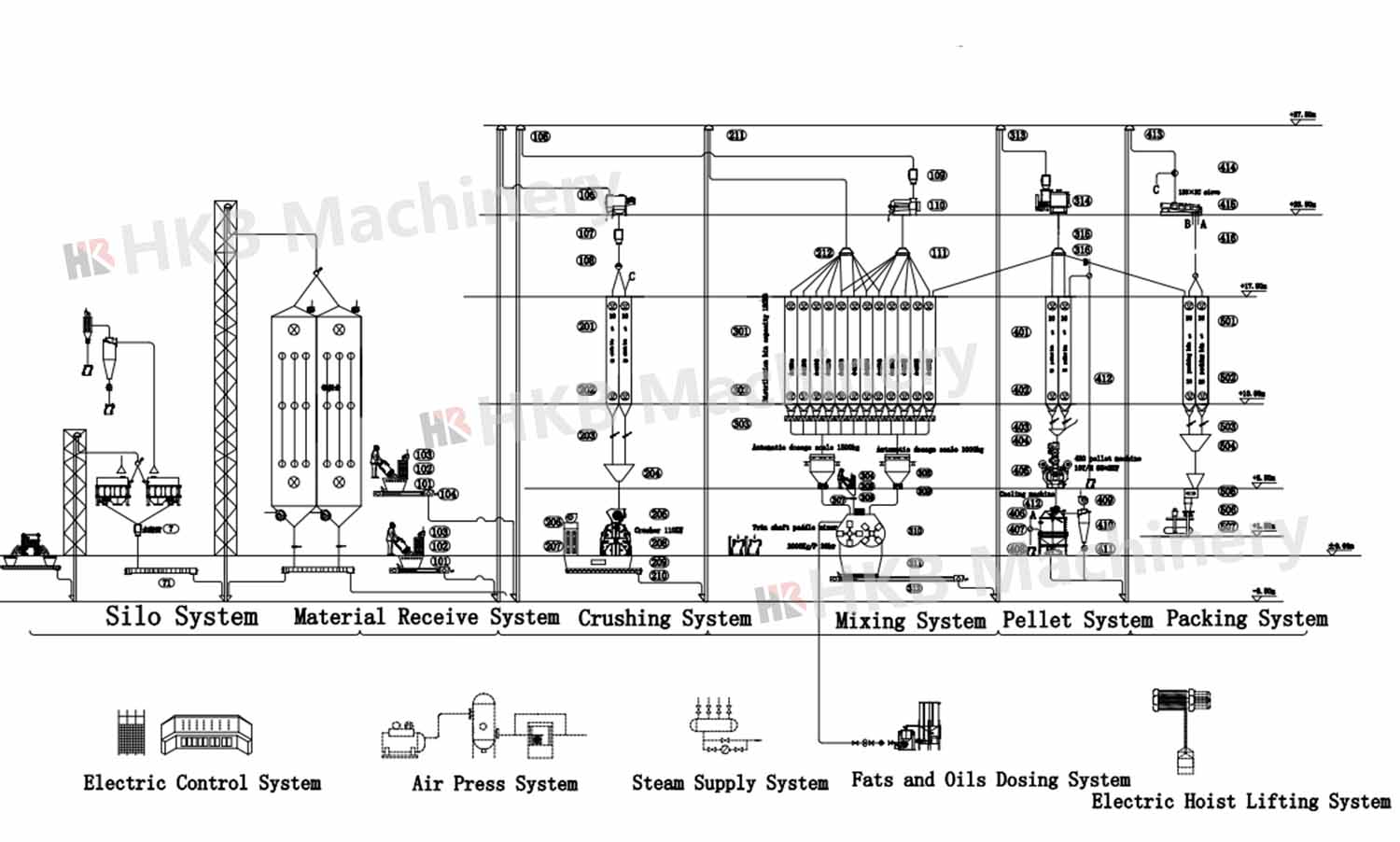

Reference Drawings

After-sale Service

 – HKB provides advanced grain safety storage technology to assure your grain silo 100% quality stability.
 – grain silo Quality guarantee is one year after installation and commissioning or 18 months after leaving China Port. Maturity is the first.
 – 7 days x 24 hours service, within 24 hours reply/solve of any technical issues upon request.
 – Routinely telephone track to remove all might be problems grain silo or issues guarantying the whole system grain silo long-lasting safety and reliability.
 – HKB will consider all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentation, etc. So our respected Users feel so relaxed and easy to get the grain silo system well.
