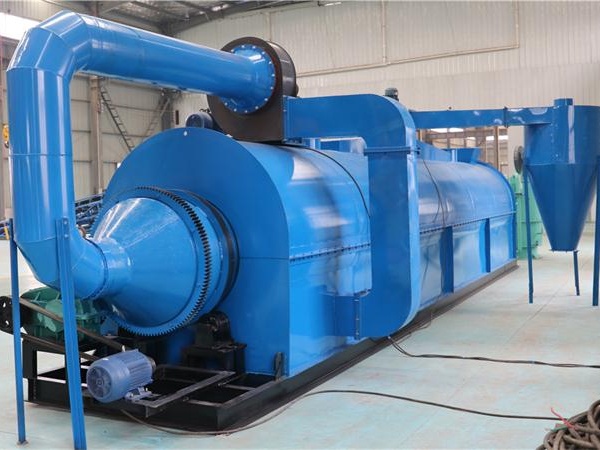

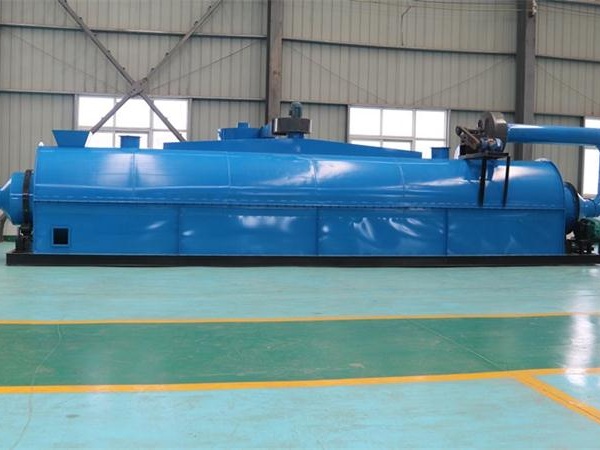

Sawdust Dryer

Application

Tubular dryer is widely used for drying small particles of loose materials in the chemical industry, light industry, agriculture, food industry, feed industry and other industries. Such as brewer’s grain, bean dregs, marc, sawdust, cow dung, etc.

Inquiry [email protected] +8613598071775

PDF Download 

Product Introduce

HKB Sawdust dryer is a dryer that indirectly heats and adopts the counter-current drying principle to achieve the purpose of drying. The Sawdust dryer our company adopts domestic and overseas similar products, advantages, and improves its performance greatly.

Feature

1.New technology of indirect-drying structure, the working process is very safe and healthy.

2.Equipped with biofuels stove, it has a high environmental protection effect.

3.High thermal efficiency, the thermal efficiency can reach 60%.

4.Material after drying: no pollution, no color change. The effect of drying is very good.

5.Reasonable design, high output, and low cost.

6.High degree of automation, easy to operate, save manpower.

Structure

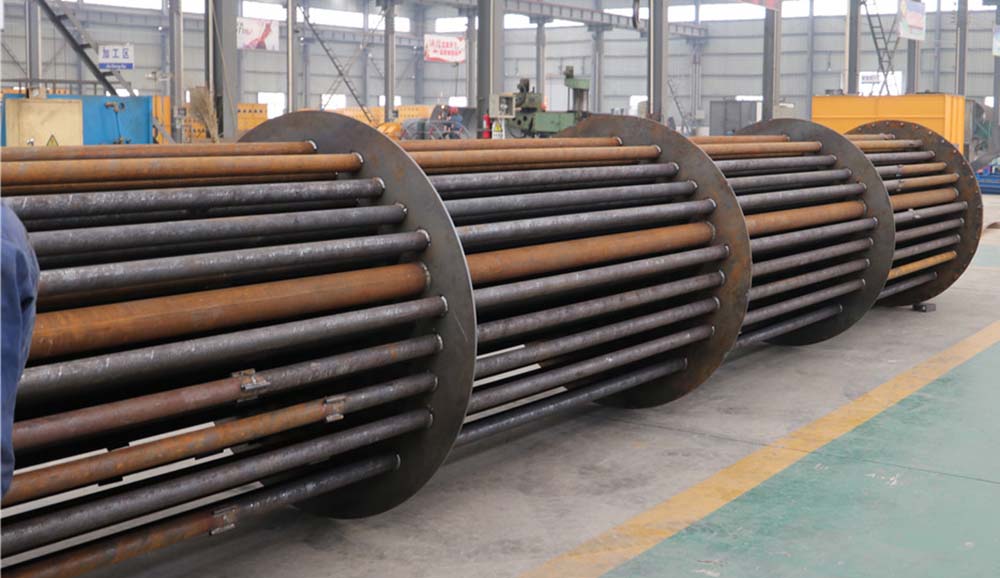

Inside the rotary dryer, there are many tubes. During the drying process, the hot air will enter the tube-internally by the draught fan, while the materials exist outside the tube, so that the materials can be dried indirectly, there is no pollution and no color change, also a fire that caused by too high temperature will be avoided successfully.

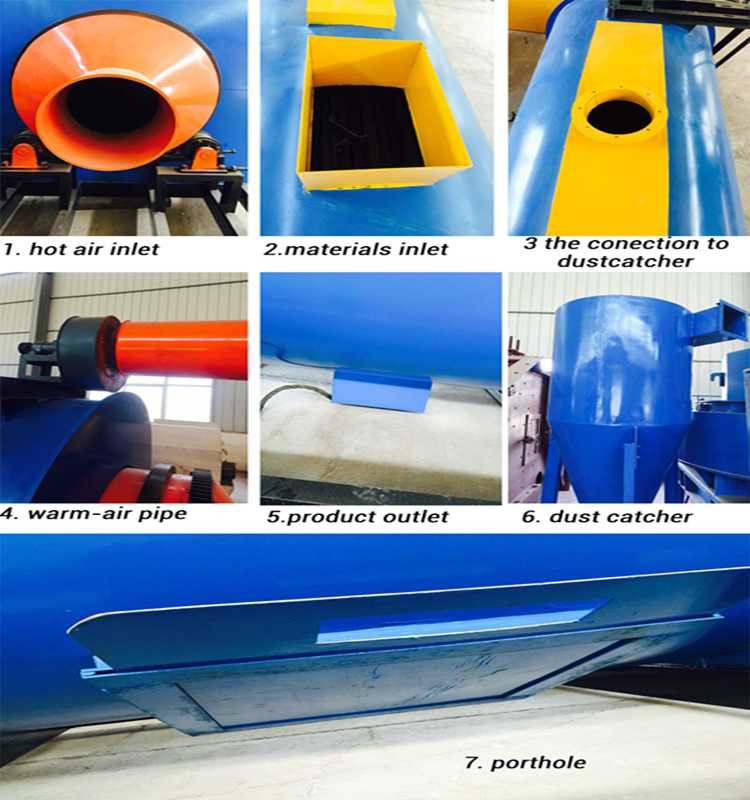

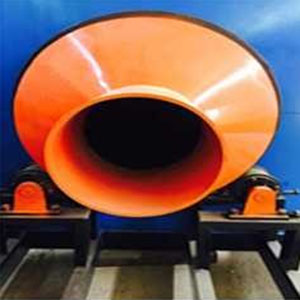

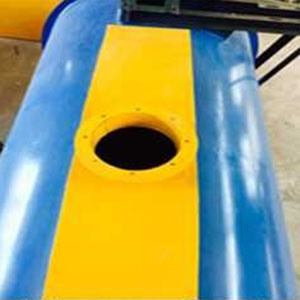

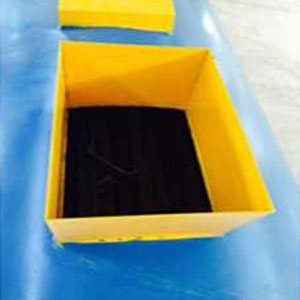

Hot Air Inlet	Materials Inlet	The Connection to the Dust Catcher

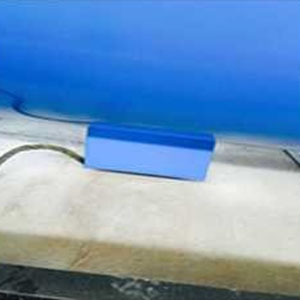

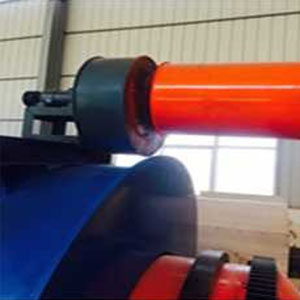

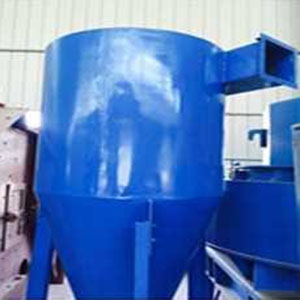

Warm-air Pipe	Product Outlet	Dust Catcher

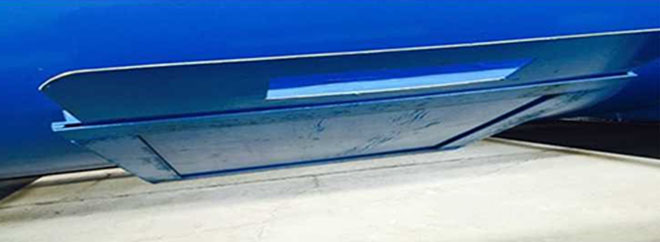

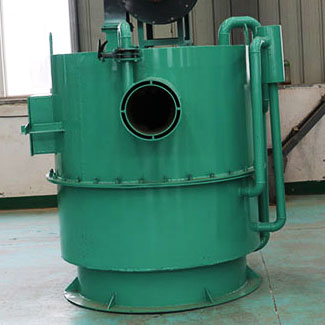

Porthole		Stove

Technical Parameter

Model		HY-1060	HY-1260	HY-1290	HY-1590
Dimension(mm) *LWH*		9000×1500×2000	9000×1700×2200	12000×1700×2200	12000×2000×2500
Input Capacity (t/h)		0.5-1	1.5-2.5	2.5-4	4-6
Power(kw)		12	15	18.7	25
Moisture after drying(%)		5%-10%	5%-10%	5%-10%	5%-10%
Heating media		Hot clean air	Hot clean air	Hot clean air	Hot clean air
Hot air temperature(℃)		＜120℃	＜120℃	＜120℃	＜120℃
Main fan		Y5-47-5C-5.5KW		Y5-47-5C-7.5KW
Dedusting fan		4-72-3.2A-2.2KW		4-72-3.6A-3KW
Adjustable-speed motor		4P-4KW	4P-4KW	4P-7.5KW	4P-7.5KW
Hot blast stove	Inside diam	1300mm	1300mm	1300mm	1300mm
Dust catcher *(diamhigh) (m)**		1*1.8	1.2*2.2	1.2*2.2	1.5*2.5
