    3000 Ton Steel Grain Storage Silo Corrugated Malted Maize Corn Grain Silo Vertical Soybean Meal Sorghum Corn Storage Price

    Application

    HKB Grain Silo is widely used for grains storage such as wheat, corn, soybean, paddy, rice, soybean meal, barley, malt, sunflower seeds, rapeseeds, peanuts, flour, and other powder materials, oat, special grain, and seeds, etc.

    PDF Download
    Product Introduce

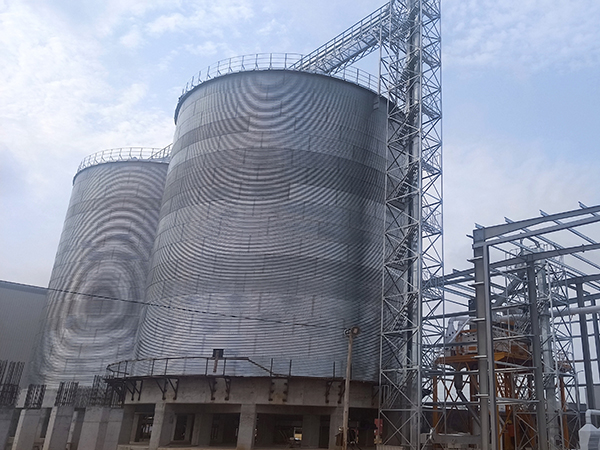

    HKB 3000 Ton Steel Grain Storage Silo Corrugated Malted Maize Corn Grain Silo Vertical Soybean Meal Sorghum Corn Storage Price is made of high-quality 275g/m2, 300g/m2, and 350g/m2 hot-dip galvanized steel plates which are rolled into corrugation and made into standard connecting holes. The vertical friction is supported by the steel silo stiffeners which are evenly vertically applied in the silos. The connecting screw bolts are served with round galvanized steel washers, the connecting holes are served with age-resistant and water-proof daub belts that are for aviation special purposes. These plates and stiffeners are connected by high-strength screw bolts to keep the flat silo strong and durable. The hopper bottom silos are equipped with flat repairing doors, outside ladder and ladder guard rings.

    Feature

    1.Assembly, easy to ship and save freight.

    2.Hot-dip galvanized plates (275g/m2-600g/m2), very WATERPROOF &RUST-PROOF.

    3.Hopper bottom has low cost price.

    4.Flat bottom has large capacity from 1500T-20000T.

    5.Silos can store grain safely and save labor cost and space.

    Application

    HKB 3000 Ton Steel Grain Storage Silo Corrugated Malted Maize Corn Grain Silo Vertical Soybean Meal Sorghum Corn Storage Price is widely used for grains storage such as wheat, corn, soybean, paddy, rice, soybean meal, barley, malt, sunflower seeds, rapeseeds, peanuts, flour, and other powder materials, oat, special grain, and seeds, etc.

    Structure

    How do we assure the silo solidity?

    • 1- Roof Top:  The roof is designed to stand up even the harshest environment of extreme snow disaster with the echo of top and down part strong structure and connecting radial ribs which is Z interconnected again itself. Roof panels incorporate with ribs with over and under lap profiles ensuring a precise fit.
    • 2- Body Steel Plate:  A commercial 275g/m2 double galvanized steel coating increases life and durability. 450g/m2 and 600g/m2 coating available for customized orders. Each sidewall sheet is manufactured from high-tensile steel that can overcome extreme power, pressure.
    • 3- Stiffeners:  HKB’s high tension stiffener(can be located inside or outside the silo,) profiles make bins stronger allowing silos to stand well even under an extreme hurricane. Base stiffener boots are coated so they won’t rust over time.
    • 4- Wind Ring:  For tall silos or that need to resist heavy wind. Wind ring and brackets reduce bolt holes in stiffeners; Swaged technology ensure silo power load capacity.
    • 5- High strength bolts and screws:  HKB’s high strength bolts paired with sealing washers, coated hardware provides added protection from rust to ensure your grain bin stands the test of time.
    • 6- Manhole:  Double layer security locking manhole system.
    • 7- Wide Flange H Beam Support Structure:  The wide flange H-Beam support structure has the strength and durability to support the heavy hopper silo loads for a long time, and with consideration of wind and seismic requirements.

    Technical Parameter

    Scientifically speaking, the silo capacity should be measured with volume (m3). Even in the same silo, the storage tons will be different for different grains with different densities. The following table is calculated based on a grain density of 0.75kg/m3, and surely HKB customizes silo systems unique for you.

    Most Popular Hopper Bottom Steel Silo Technical Specifications
    Capacity 50Ton 100Ton 150Ton 200Ton 300Ton 500Ton 1000Ton 1500Ton
    Model TCZK

    03605

    TCZK

    04507

    TCZK

    05507

    TCZK

    06406

    TCZK

    07307

    TCZK

    07313

    TCZK

    11010

    TCZK

    12811

    Diameter(m) 3.667 4.584 5.500 6.417 7.334 7.334 11.000 12.834
    Total Height(m) 9.56 12.53 13.25 12.85 14.70 21.42 20.95 23.51
    Volume(m³)

    Density:0.75ton/m³

    69 150 222 273 415 699 1346 2039
    Most Popular Flat Bottom Steel Silo Technical Specifications
    Capacity 1000Ton 1500Ton 2000Ton 2500Ton 3000Ton 5000Ton 8000Ton 10000Ton
    Model TCK

    10014

    TCK

    11915

    TCK

    13715

    TCK

    15514

    TCK

    15518

    TCK

    18321

    TCK

    24718

    TCK

    25621

    Diameter(m) 10.084 11.918 13.750 15.584 15.584 18.334 24.751 25.668
    Total Height(m) 18.69 20.34 20.87 20.30 24.78 28.60 26.99 30.60
    Volume(m³)

    Density: 0.75ton/m³

    1335 2009 2701 2467 4145 6693 10879 13484
    Optional Accessories

    Henan Haokebang Machinery Equipment Co., Ltd. specializes in the production of 100-10,000 ton hopper bottom and flat bottom corrugated galvanized steel silos. According to various factors such as site, weather, and geology, we provide professional silo design, equipped with elevators, unloading pits, pre-cleaner, conveyors, sweeping auger and other accessories to meet the diverse needs of customers.

    After-sale Service
    • – HKB provides advanced grain safety storage technology to assure your grain silo 100% quality stability.
    • grain silo Quality guarantee is one year after installation and commissioning or 18 months after leaving China Port. Maturity is the first.
    • – 7 days x 24 hours service, within 24 hours reply/solve of any technical issues upon request.
    • – Routinely telephone track to remove all might be problems grain silo or issues guarantying the whole system grain silo long-lasting safety and reliability.
    • – HKB will consider all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentation, etc. So our respected Users feel so relaxed and easy to get the grain silo system well.
